SmartULD Solutions:
Infinite Power, Full Visibility
The world’s first kinetically powered infrastructure-free ULD tracking system – delivering safety, efficiency, and real-time visibility of ULD’s anywhere and everywhere in the world.
- AVIUSULD
- CCE GROUP
Why SmartULD?
Air cargo operations face continuous challenges of increasing costs of asset loss, lack of asset visibility due to unreliable stock takes, and rising fire risks. SmartULD changes the game with infinite battery life, no infrastructure requirements, and accuracy down to 0.2 m – even inside warehouses.
- Kinetic energy harvesting for self-charging operation
- LTE Cat1-Bis / LTE-M / NB-IoT with A-GNSS support for global coverage
- BLE 5.4 mesh networking for precise indoor positioning and equipment tracking
- Flight Safe Mode for automatic compliance during flight
- AVIUSULD
- CCE GROUP

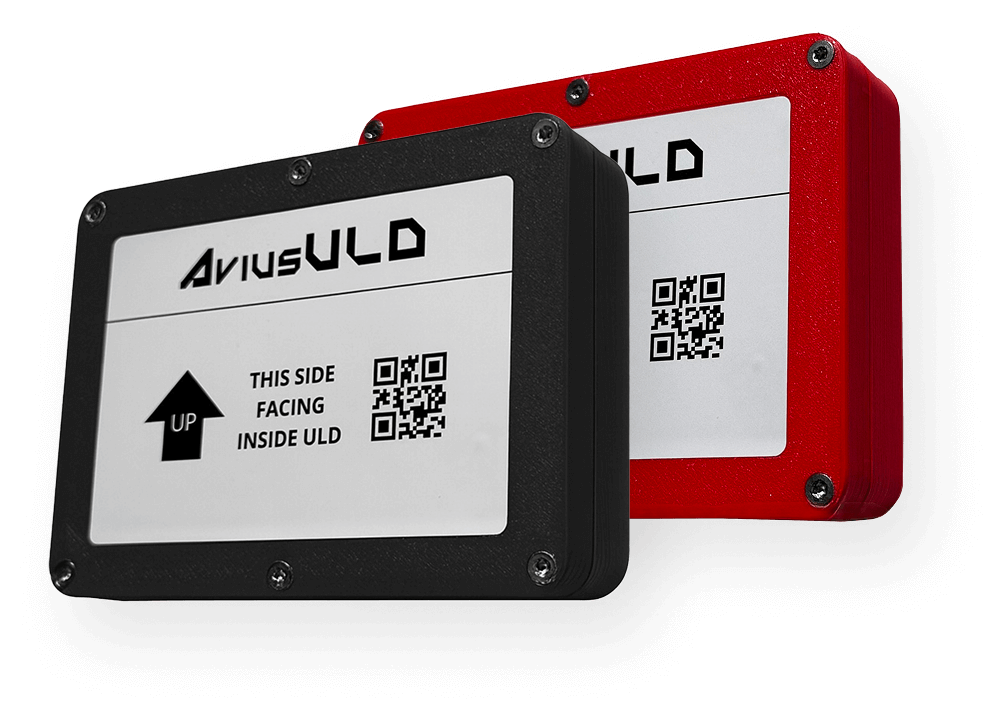

SmartULD Solutions

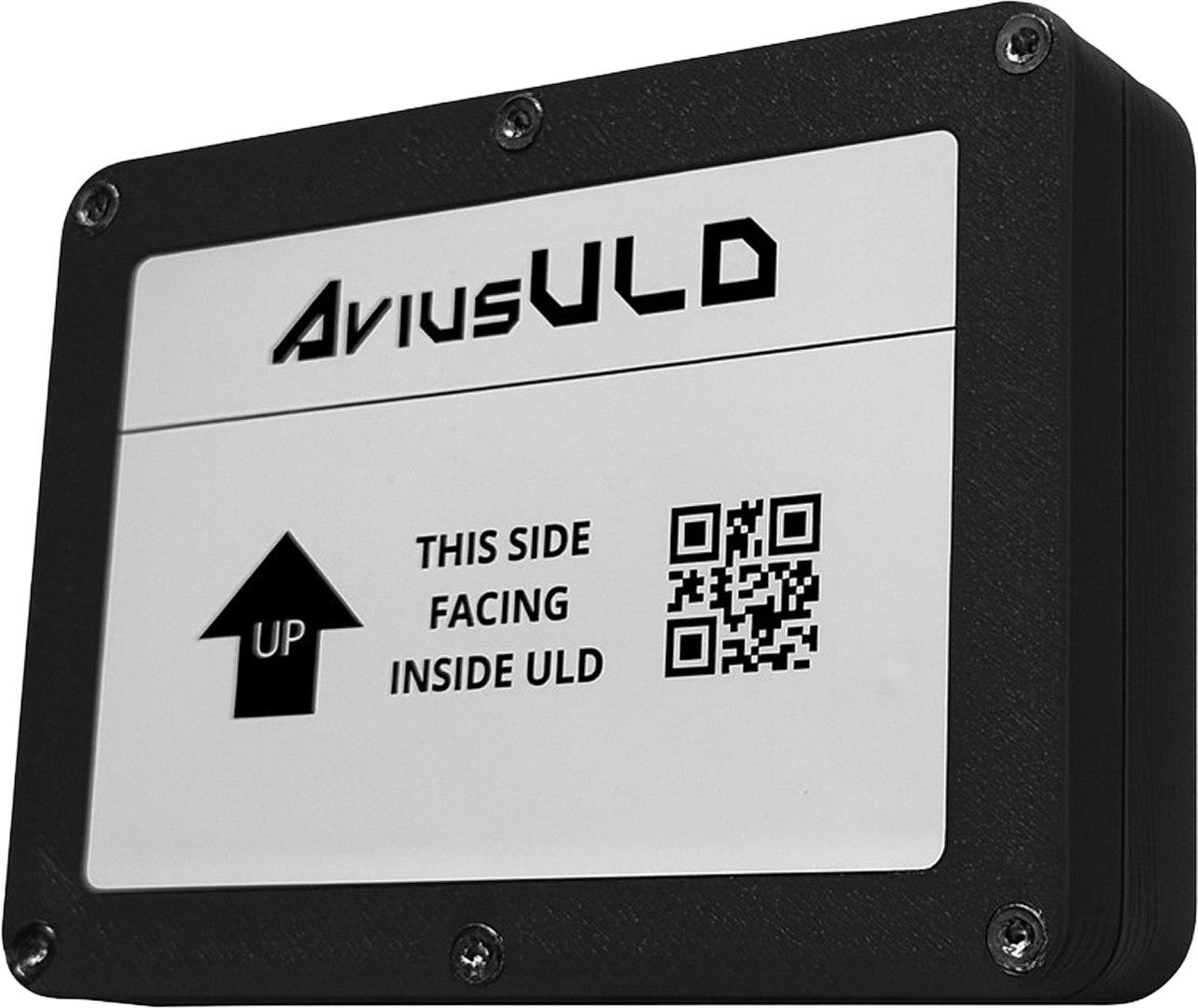

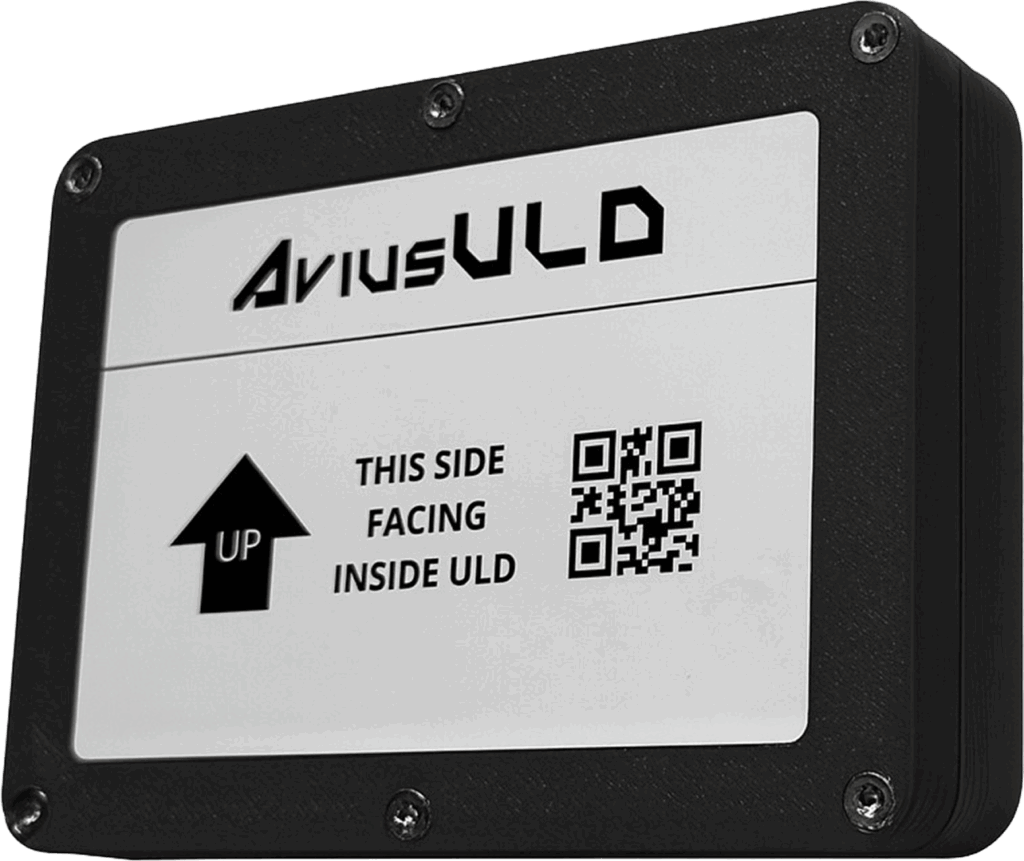

SMARTULD Standard
- Location + environmental monitoring
- Motion-triggered uplinks, configurable Over-The-Air
- Sensors for temperature, humidity, pressure, VOC, and hydrogen
- Ideal for fleet-wide tracking of ULD’s and other aviation assets as well as compliance monitoring

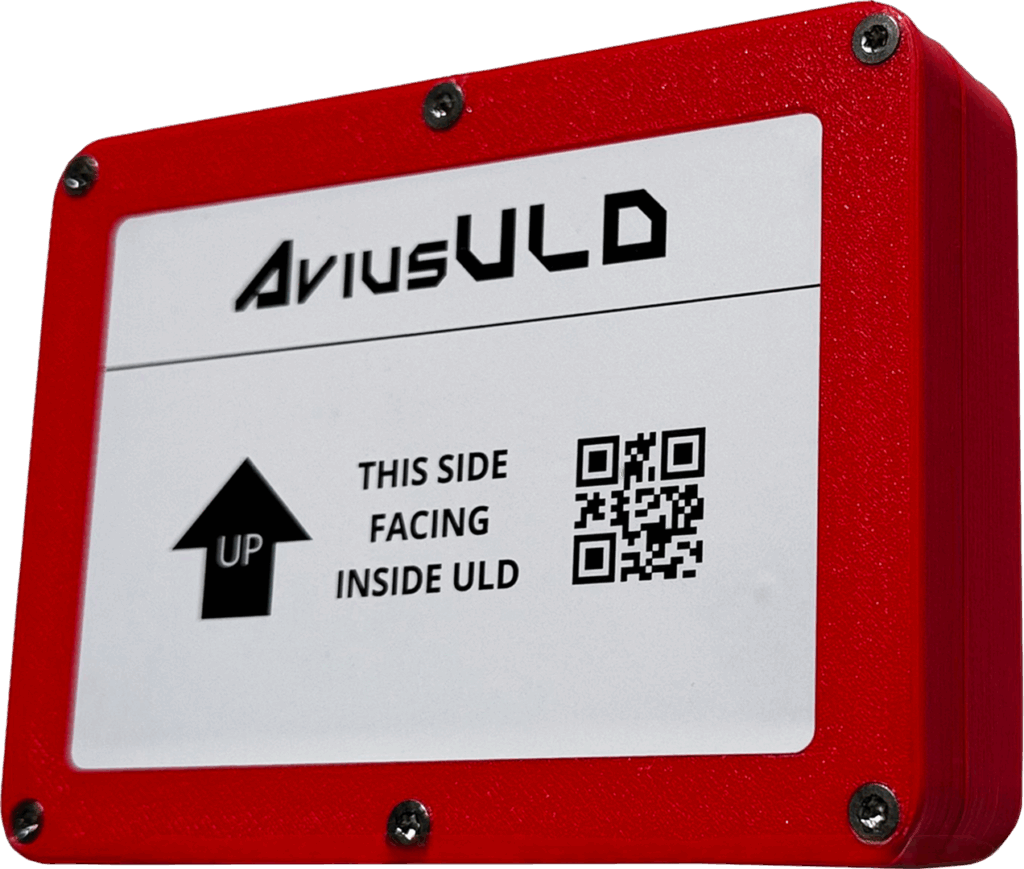

SMARTULD Fire
- All Standard features, plus hydrogen and volatile-organic-compound sensor
- Detects lithium battery off-gassing up to 2 hours before thermal runaway
- Strengthens cargo safety and reduces insurance risk

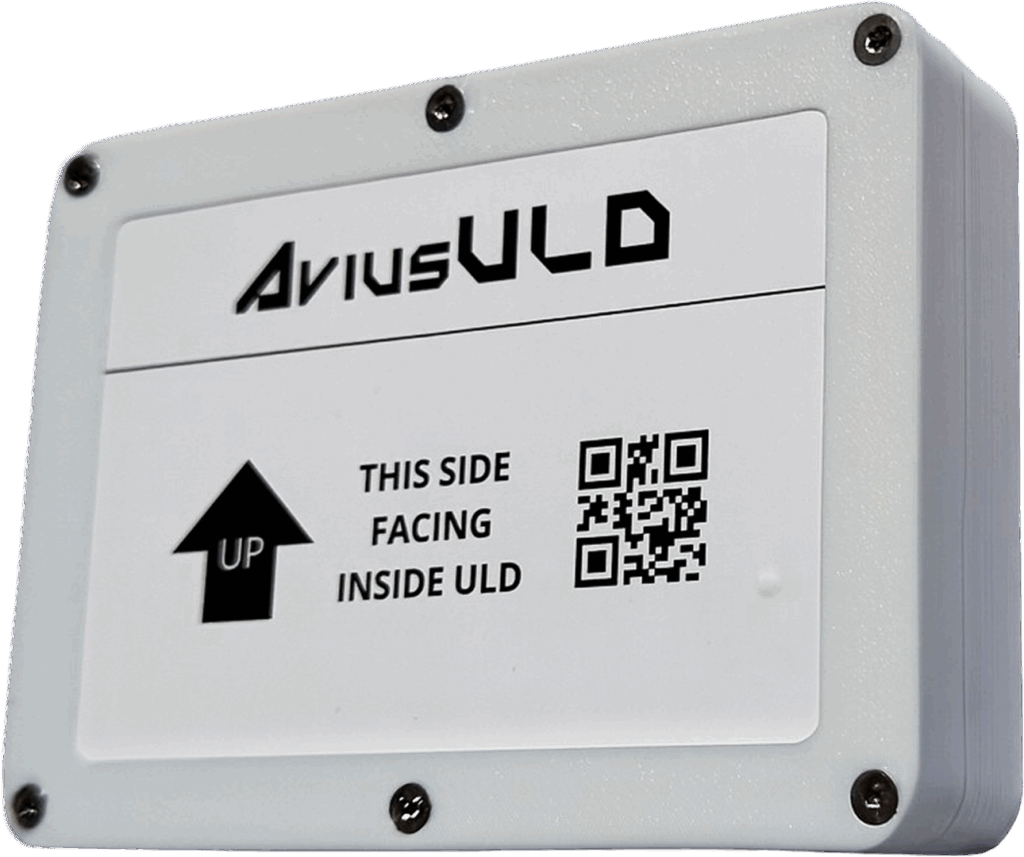

SMARTULD Occupancy
- Sensors detect occupancy by scanning internal cargo space
- Enables better utilization, faster loading, and enhanced cargo security
SMARTULD Pallet Tag
- Rugged tag for pallets with kinetic charging
- LTE-M + Wi-Fi multilateration + BLE 5.4 positioning
- MESHLOCK capability to manage stacked pallets
- AVIUSULD
- CCE GROUP
Configuration Options
| Configuration | Standard | Fire | Occupancy |
|---|---|---|---|
| Idle Interval | 24 hrs | 24 hrs | 24 hrs |
| Idle Positioning | A-GNSS | A-GNSS | A-GNSS |
| Active Interval | 90s after movement | 90s after movement | 90s after movement |
| Flight Mode | on | on | on |
| Motion Trigger | on | on | on |
| Environmental Mon. | on | on | on |
| Impact Warning | on | on | on |
| Early Fire Warning | off | on | off |
| Occupancy Level | off | off | on |
| Data Logging | on | on | on |
All parameters adjustable over-the-air via the ASU Platform.
- AVIUSULD
- CCE GROUP
Technical Data
(SmartULD Standard/Fire)
| Feature | Specification |
|---|---|
| Dimensions | 128 x 84 x 31 mm ABS enclosure |
| Power | 3.2V, 3600 mAh Li-ion + 0.4 W kinetic charger |
| Communication | CAT1 Bis LTE, BLE 5.4 |
| Positioning | A-GNSS (1–10 m outdoor), Wi-Fi (1–10 m indoor), GPRS + Wi-Fi (10–100 m) |
| BLE | Range 100–400 m |
| Operating Conditions | –20 oC to +80 oC |
| Certifications | CE, RTCA/DO-160G, Section 21, Category H, UN/UL, RED |
| Sensors | 6-axis accelerometer, hydrogen, temperature, humidity, pressure, VOC |
| Options | Starlink & Wi-Fi comms, RFID |

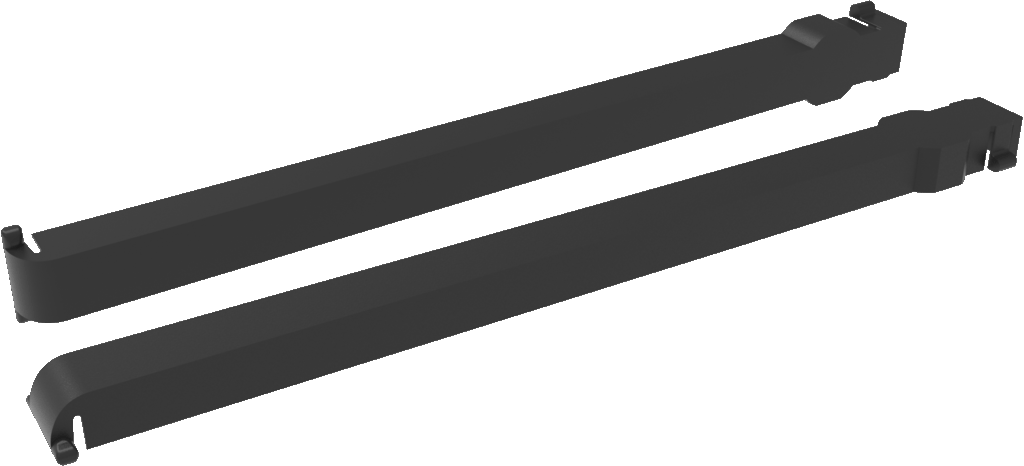

| Accessories | Mounting bracket |
| Memory | 64 MB |
Technical Data
(SmartULD Occupancy)
| Feature | Specification |
|---|---|
| Dimensions | 112 x 96 x 29 mm (with flanges), 96 x 80 x 29 mm (without) |
| Power | 1800 mAh LiFePO₄ + 0.4 W kinetic charger |
| Positioning | A-GNSS (2.5–10 m clear sky), BLE AoA (0.2 m accuracy) |
| BLE | Range 200–400 m |
| Operating Conditions | –10 oC to +60 oC |
| Certifications | CE, RTCA/DO-160G, Section 21, Category H, UN/UL, RED |
Technical Data
(SmartULD Pallet Tag)
| Feature | Specification |
|---|---|
| Power | 0.1 W kinetic charger + 800 mAh 3-cell Li-ion battery |
| Connectivity | Nordic LTE-M + NB-IoT |
| Positioning | Wi-Fi multilateration, BLE 5.4, A-GNSS |
| Operating Conditions | –20 oC to +80 oC |
| Certifications | CE, RTCA/DO-160G, Section 21, Category H, UN/UL, RED (all pending) |
- AVIUSULD
- CCE GROUP
Proven Value
SmartULD helps airlines and operators:
Infinite battery-life protects investment
and prolongs ROI
Cut buffer
stocks
by 15–30%
Reduce loss
and/or misplacement
of assets
Improve
turnaround times
and forecasting
Strengthen cargo safety
and reduce insurance claims
Optimize
space use
and lower carbon footprint
Safety & Compliance
- Designed for aviation use with PED standards and Flight Safe Mode
- CE, RED, and DO-160 certifications
- Approval packs available to support airline approval process
Get
Started
SmartULD devices are offered via a purchase + subscription model.
Contact us to arrange a proof-of-concept trial and see how SmartULD can transform your fleet.
